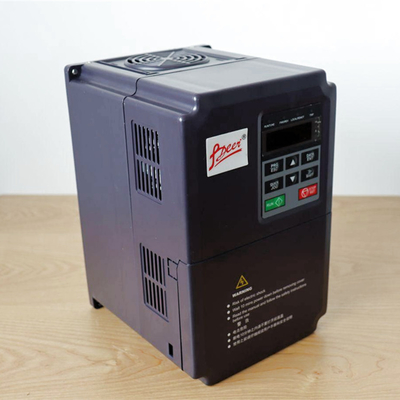

Brand name | IDEEI |
Type | DC/AC Inverters |
Output Type | Single/Triple |
Output Voltage | 0-400V |
Output Frequency | 50/60HZ |
Certificate | other |
Warranty | 18Month |
Display | Digital |
application | industry |
AC Drive Model | Power Capacity (kVA) | Input Current (A) | Output Current (A) | Adaptabl Motor (kW) | ||||
Three-phase 380 V, 50/60 Hz | ||||||||
3300-0R7G-4 | 1.5 | 3.4 | 2.1 | 0.75 | ||||
3300-1R5G-4 | 3 | 5 | 3.8 | 1. 5 | ||||
3300-2R2G-4 | 4 | 5.8 | 5.1 | 2.2 | ||||
3300-004G-4 | 5.9 | 10.5 | 9 | 4 | ||||
3300-5R5G-4 | 8.9 | 14.6 | 13 | 5.5 | ||||
3300-7R5G-4 | 11 | 20.5 | 17 | 7.5 | ||||
3300-011G-4 | 17 | 26 | 25 | 11 | ||||
3300-015G-4 | 21 | 35 | 32 | 15 | ||||
3300-018G-4 | 24 | 38.5 | 37 | 18.5 | ||||
3300-022G-4 | 30 | 46.5 | 45 | 22 | ||||
3300-030G-4 | 40 | 62 | 60 | 30 | ||||
3300-037G-4 | 57 | 76 | 75 | 37 | ||||
3300-045G-4 | 69 | 92 | 91 | 45 | ||||
3300-055G-4 | 85 | 113 | 112 | 55 | ||||
3300-075G-4 | 114 | 157 | 150 | 75 | ||||
3300-090G-4 | 134 | 180 | 176 | 90 | ||||
Item | Specifications | ||||
Standard functions | Maximum frequency | • Vector control: 0–300 Hz • V/F control: 0–320 Hz | |||
Carrier frequency | 0.5–16 kHz The carrier frequency is automatically adjusted based on the load features. | ||||
Input frequency resolution | Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.025% | ||||
Control mode | • Sensorless flux vector control (SFVC) • Closed-loop vector control (CLVC) • Voltage/Frequency (V/F) control | ||||
Startup torque | • G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC) • P type: 0.5 Hz/100% | ||||
Speed range | 1:100 (SFVC) | 1:1000 (CLVC) | |||
Speed stability accuracy | • ± 0.5% (SFVC) • ± 0.02% (CLVC) | ||||
Torque control accuracy | ± 5% (CLVC) | ||||
