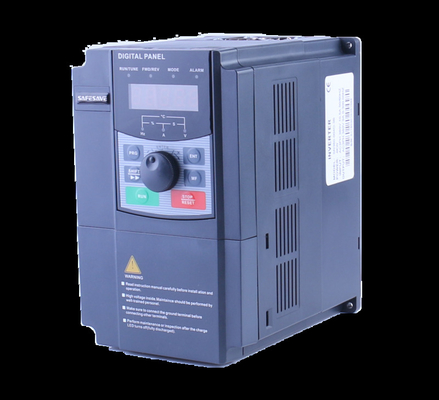

Solar Drive 220v 380v 480v Variable Frequency Pump VFD Inverter 220v 380v Solar Converter 23.6*24.7*19.6cm

1.0 Sets
MOQ
Solar Drive 220v 380v 480v Variable Frequency Pump VFD Inverter 220v 380v Solar Converter 23.6*24.7*19.6cm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SN360-3B
Input Voltage: DC200V-DC750V,AC 220V,380V,480V
Output Voltage: AC220V,AC380V,AC480V
Output Current: 2.1A,3.8A,5.1A
Output Frequency: 0.00 ~ 400.00Hz
Output Type: Multiple
Size: 23.6*24.7*19.6cm
Type: Other
Weight: 2.4kg
Certification: CE,ISO9001
Solar DC Input: 400V-750V
AC Input: 220V,380V,480V
AC Output: Three Phase 220V,380V 480V
Rated Power: 0.75kw 1.5kw 2.2kw
Inbuilt Bypass: Yes
Digital Display: LED
Efficiency: 99%
Warranty: 18 Months
Protection: Overvoltage,overload,overheat,dry Run Etc
Basic Infomation
Certification: CE,ISO9001
Model Number: SN360-3B
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Supply Ability: 10000 Set/Sets per Month
Product Description

Solar VFD Pump Drive 220v 380v 480v Variable Frequency Solar Inverter Converter 0.75kw 1.5kw 2.2kw V/F Control Motor Inverter

Product Description
Products Specification:

1.Multiple input: Solar DC input 200-350V/400-750V;Single phase AC input 220V;Three phase AC input 220V/380V/480V.

2.Multiple output: Three phase AC output 220V/380V/480V.

3.Smart control:

*Self-adaptive Max power point(MPPT),efficiency 99%.

*Automatic regulation of motor speed and the water flow along with the intensity of sunlight.

*Automatic control with water level.Entering sleeping mode at high-water level and automatically restart at low-water level.

*Automatic control with sunlight.Entering sleeping mode with weak sunlight and automatically exits the sleeping mode when the sunlight is becoming stronger.

4.Protection: Over voltage,overload,over heat,dry-run motor protection.

5.Remote monitoring: RS485 communication port is available for pump controller or computer connection.

6.LED digital display: Convenient to understand the working state of the frequency inverter VFD and the devices,and to set the parameters when necessary.

Structural Representation

BASIC SUBMERSIBLE SOLAR WATER PUMPING SYSTEM

SOLAR PUMPING SYSTEMWIRING DIAGRAM
