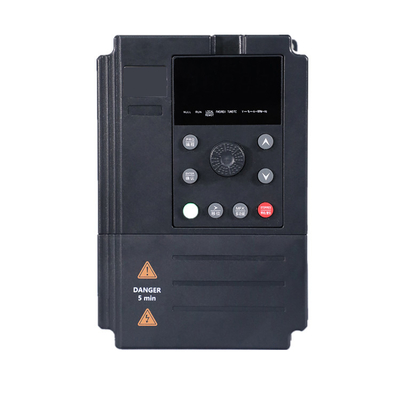

China Top 10 VFD 3 Phase 380V 1.5KW VFD Inverter variable frequency drive AC Drives

1 Piece
MOQ
$8,000.00(1 - 999 Pieces) $60.00(>=1000 Pieces)
Price
China Top 10 VFD 3 Phase 380V 1.5KW VFD Inverter variable frequency drive AC Drives
Features Gallery Product Description Request A Quote
Features
Specifications
Network: /
Customized Support: Software Reengineering
Model Number: H400-1R5G/2R2P-T4
Type: DC/AC Inverters, DC/AC Inverters
Output Type: Triple
Output Current: 3.8/5.1A
Output Frequency: 50Hz/60Hz
Size: 186*125*164MM
Weight: 2.3KG
Product Name: Frequency Inverter VFD AC Drive
Model Series: H400
Input Voltage: 380V
Rated Power: 1.5kw
Display: LED
Control Mode: SVC,FVC,V/F Control
Warranty: 18 Months
Output Voltage: 380V
Basic Infomation
Model Number: H400-1R5G/2R2P-T4, H400
Payment & Shipping Terms
Packaging Details: Standard Export Carton Package
Product Description
Notice:
Magnetic inspection fee is required. Please choose this fee when placing an order.
Please provide your VAT number when placing an order in the EU countries, United Kingdom and Norway.
Product Description
H400 Series General Purpose High Performance Vector
AC Drivs/VFD
Product name
H400 Series General Purpose High Performance Vector
AC Drivs/VFD
Power range
 0.75KW~400KW
Output Frequency Range
Vector control: 0 ~500Hz
V/F control: 0 ~2000Hz
Control Mode
Open loop vector control (SVC)
Closed loop vector control (FVC)
V/F control
Starting Torque
Model G: 0.25 Hz/150% (SVC); 0Hz/180% (FVC)
Model P: 0.5Hz/100%
Communication port
Support RS-485, Profibus-DP, CANlink, CANopen and other mainstream fieldbus communication
Application
Cement coagulation mixer and etc.


Model And Technical Data
Model No.
Motor Power
(KW)
Rated Current
(A)
Outline Dimensions
（H*W*D）
（mm)
H400-0R7G/1R5P-T4
0.75
2.1/3.8
186*125*164
H400-1R5G/2R2P-T4
1.5
3.8/5.1

H400-2R2G/4R0P-T4
2.2
5.1/9

H400-4R0G/5R5P-T4
3.7
9/13
H400-5R5G/7R5P-T4
5.5
13/17
248*160*183
H400-7R5G/11RP-T4
7.5
17/25

H400-11RG/15RP-T4
11
25/32

H400-15RG/18RP-T4
15
32/37
322*208*192
H400-18RG/22RP-T4
18
37/45

H400-22RG/30RP-T4
22
45/60

H400-30RG/37RP-T4
30
60/75
463*285*228
H400-37RG/45RP-T4
37
75/91

H400-45RG/55RP-T4
45
91/112
600*385*265
H400-55RG/75RP-T4
55
112/152
H400-75RG/90RP-T4
75
152/176
H400-90RG/110RP-T4
90
176/210
700*473*307
H400-110RG/132RP- T4
110
210/253
H400-132RG/160RP- T4
132
253/304
H400-160RG/185RP- T4
160
304/344
930*579*380
H400-185RG/200RP-T4
185
344/377
H400-200RG/220RP-T4
200
377/426
H400-220RG/250RP-T4
220
426/465
1060*650*377
H400-250RG/280RP-T4
250
465/520
H400-280RG/315RP-T4
280
520/585
H400-315RG/350RP-T4
315
585/650
1360*800*388
H400-355RG-T4
355
650
H400-400RG-T4
400
725

H400 Series Frequency Inverter
H400 series frequency inverter is based on the DSP control system, adopts current vector control technology, and cooperates with multiple protection methods. It can be applied to asynchronous motors and provide excellent driving performance.
The product has greatly improved customer ease of use and environmental adaptability in terms of air duct design, hardware configuration, and software functions. The key components are all international brands such as Tl, ON, INFINEON, etc., which provides a strong guarantee for customers' rest assured use.
Advantages
1. High torque starting characteristics: 0.25 Hz/150% (SVC); 0Hz/180% (FVC), speed stabilization accuracy up to ±5% (FVC), wide speed range, and super adaptability; 2. It can realize accurate parameter self-learning and provide excellent motor drive performance 3. It has multiple guarantees such as fast current limit, overload, overvoltage, overheating, load drop, etc., instantaneous stop and non-stop function, realizes the complete separation of VF and operation, and also has the function of overexcitation; 4. Abundant expansion card options, support I/O expansion, communication bus expansion, support RS-485, Profibus-DP, CANlink, CANopen and other mainstream field bus communication, support a variety of PG cards; 5. Support asynchronous motor and synchronous motor control at the same time;
Specification
Product name
H400 Series General Purpose High Performance Vector AC Drivs/VFD
Place of Origin
Shanghai, China
Brand Name
FMZ
Model Number
H400-1R5G/2R2P-T4
Type
Frequency inverters
Control mode
Open loop vector control (SVC)
Closed loop vector control (FVC)
V/F control
Input voltage
380V
Rated power
1.5KW
Output Type
3 phase output
Output Current
3.8/5.1A
Output Frequency
50Hz/60Hz
Size
186*125*164MM
Weight
2.3KG
Warranty
18 months
Wiring diagram
Packing & Delivery
1) Trade Term: FOB Shanghai/Yiwu/Guangzhou/Shenzhen
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)

2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(If there is any special request, the packing cost should be re-negotiated)
Single Product Size
186*125*164MM
Single Package Dimension
257*193*235MM
Single Gross Weight
2.3KG
Company Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts. Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries. We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world. About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training. Our business philosophy is to 'Always be with you and enjoy success together'.
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter

4. Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market. Own software to offer customized service. We accept OEM service with technical support. CE &TUV, ISO9001, CCC certificate.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
