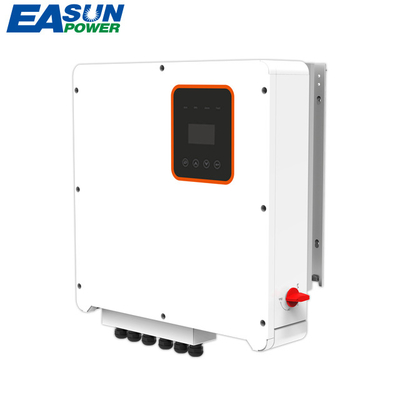

EASUN Hybrid Solar Power Inverter IP65 Waterproof Three Phase DC 48V To AC 380V Solar Level Inverters 10KVA 13KW 600V Hybrid Inverter

5 Pieces
MOQ
$2,249.00(5 - 19 Pieces) $2,199.00(20 - 49 Pieces) $2,169.00(>=50 Pieces)
Price
EASUN Hybrid Solar Power Inverter IP65 Waterproof Three Phase DC 48V To AC 380V Solar Level Inverters 10KVA 13KW 600V Hybrid Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: IGrid WPT 10KW-R
Input Voltage: 1000V
Output Voltage: 360-440Vac
Output Current: 15.9A
Output Frequency: 50 Hz/60 Hz
Output Type: Triple
Size: 530X200X560mm
Type: DC/AC Inverters
Inverter Efficiency: 99.5%
Certificate: CE
Warranty: 5 Years
Weight: 41KG
Product Name: MPPT Solar Charger
Feature: Hybrid Solar Inverter
Rated Power: 10kW
Nominal Output Current: 15.9A
Nominal DC Voltage: 125V~600V
MPPT Range @ Operating Voltage: 125V-850V
Communication Ports: CAN/RS485
Max Input Power: 13kw
Noise: Less Than 35dB
Protection Level: IP65
Basic Infomation
Certification: CE
Model Number: IGrid WPT 10KW-R
Payment & Shipping Terms
Packaging Details: 1pc/carton, 400pcs for 20ft container or according to clients' needs.
Supply Ability: 2000 Piece/Pieces per Month
Product Description
EASUN POWER IP65 Waterproof Three Phase 48V DC to AC 380V Level Converters 10KVA 13KW 600V Hybrid Solar Inverter

Product Main Features

* 10KAV rated power
* 48V battery voltage
* Max 1000v DC Voltage
* 125v-850v MPPT range
* Max 13kw power
* Max 11kva output power
* 50/60Hz frequency range
* Support WIFI
* IP64 Level waterproof
* Supports Parallel Function
Specification
Model
IGrid WPT 10KW-R
PV input
Max.input power
13KW
Max.PV voltage
1000V
MPPT range
125V-850V
Max. input current
12.5A*2
MPPT tracker/strings
2/1
AC output
Max. output power
11KVA
Max. output current
15.9A
Nominal voltage/range
400VAC /360Vac~440Vac
Frequency
50 /60Hz
PF
0.99lagging-0.99leading
AC output topology
3W+N+PE
Battery
Battery voltage range
125V~600V
Charge/discharge current
50A
Max. Charge/discharge power
11KW
Battery type
Lithium-ion /Lead-acid
Communication interface
CAN/RS485
Eps output
Max. output power
11KVA
Rated voltage
400Vac
Rated current
15.9A
Rated frequency
50 /60Hz
Automatic switchover time
<20ms
General data
Battery chage/dischage
97.50%
Protection class
IP65
Noise emission (typical)
<35dB
Operation temperature
-25ºC~+60ºC
Relative humidity
0 ~95% （non-condensing）
Altitude
2000m
Dimensions (WXDXH)
530X200X560mm
Inverter topology
Without transformer
Self-consumption
<3W
Features
Display
LCD
Interface:RS485/wifi/can/drm
yes /opt/yes/yes
Certifi cates
CE、TUV
Product Description
Packing & Delivery
1pc/carton, 400pcs for 20ft container or according to clients' needs.
Company Profile
Easun Power Technology Corp Limited is located in Shenzhen China. We offers a full range of Solar product including : Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator, etc. all of our product with low MOQ and in stock for customized logo. We commits to offer high quality products, has a team of professional and experienced specialists in the field of photovoltaic. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.
FAQ
1. Who are we?

We are Easun Power factory is a leading high-tech enterprise which established in 2012. It is located in Shenzhen China, sell to North America(25.00%),Mid East(15.00%),Southern Europe(15.00%),Western Europe(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 50-100 people in our office.

2. Why choose us ?

With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center;

3. What can you buy from us?

Solar Inverter, Car Power Inverter , Solar Charger Controller,Battery

4. Q: How to order ?

A: Step 1, please tell us model name or link and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the scheduled time.

5. Q: When will make delivery ?

A: Delivery time
-Sample order: 1-3 days after receipt of the full payment.
-Stock order: 3-7 days after receipt of the full payment.
-OEM order: 12-20 days after receipt of the deposit.

6. After-sales Service

1 year warranty for all kinds of Inverter;
If you find any defective accessories after receiving the goods, please contact us at once. we will give you the new parts for
free to replace in the next order after confirmation, as an experienced manufacturer, you can rest assured of the quality and
after-sales service. ( Please refuse to sign if the goods package in broken situation )

7. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Transportation: DHL, UPS , EMS, FedEx, TNT, Air freight , Sea freight, Train way.
