Sunchonglic 2.2kw single phase 220V vfd inverter solar water pump inverter controller for agriculture irrigation system

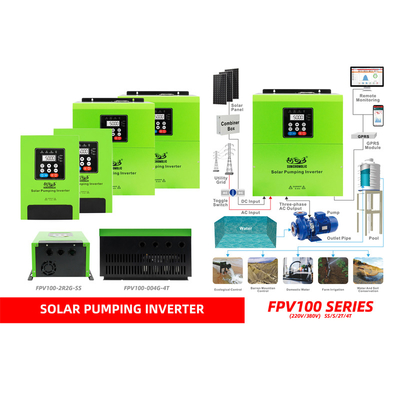

1. Solar pumping system, is constituted by solar module array, combiner box, liquid level switch, solar pump,etc.
2. Solar pumping system aims at providing solutions for the region that suffers water shortage, no power supply or uncertain power supply.
3. Self-adaptive power point tracking technology with up to 95% efficiency.
4. Auto regulation of water pump flow.
5. Self-adaptation to the drive during the installation.
6. No battery is required.
7. Solar PV array and single/three phase AC mains input.
| PV 100 Series Solar Pumping Inverters | ||||
| Product Specification | ||||
| Model | -SS | -S | -2T | -4T |
| AC input voltage(V) | 220(-15%)~240(+10%) 1PH |
220(-15%)~240(+10%) (3PH) |
380(-15%)~440(+10%) (3PH) |
|
| Max.DC voltage(V) | 440 | 440 | 440 | 800 |
| Start-up voltage(V) | 200 | 200 | 200 | 300 |
| Lowest working voltage(V) | 150 | 150 | 150 | 250 |
| Recommended DC input voltage range(V) | 200~400 | 200~400 | 200~400 | 300~750 |
| Recommended MPP voltage(V) | 330 | 330 | 330 | 500 |
| Rated Specification | ||||
| Series | Model | Rated Output Power(Kw) | Rated Input Current(A) | Rated Output Current(A) |
| -SS (0.4-2.2KW) |
PV100-0R4G-SS | 0.4 | 6.5 | 4.2 |
| PV100-0R7G-SS | 0.75 | 9.3 | 7.2 | |
| PV100-1R5G-SS | 1.5 | 15.7 | 10.2 | |
| PV100-2R2G-SS | 2.2 | 24 | 14 | |
| PV100-004G-SS | 4 | 30 | 23 | |
| PV100-5R5G-SS | 5.5 | 50 | 32 | |
| -S (0.4-2.2KW) |
PV100-0R4G-SS | 0.4 | 6.5 | 2.5 |
| PV100-0R7G-SS | 0.75 | 9.3 | 4.2 | |
| PV100-1R5G-SS | 1.5 | 15.7 | 7.5 | |
| PV100-2R2G-SS | 2.2 | 24 | 10 | |
| -2T (4-7.5KW) |
PV100-004G-2T | 4 | 17 | 16 |
| PV100-5R5G-2T | 5.5 | 25 | 20 | |
| PV100-7R5G-2T | 7.5 | 33 | 30 | |
| -4T 0.75-110KW) |
PV100-0R7G-4T | 0.75 | 3.4 | 2.5 |
| PV100-1R5G-4T | 1.5 | 5 | 4.2 | |
| PV100-2R2G-4T | 2.2 | 5.8 | 5.5 | |
| PV100-004G-4T | 4 | 13.5 | 9.5 | |
| PV100-5R5G-4T | 5.5 | 19.5 | 14 | |
| PV100-7R5G-4T | 7.5 | 25 | 18.5 | |
| PV100-011G-4T | 11 | 32 | 25 | |
| PV100-015G-4T | 15 | 40 | 32 | |
| PV100-018G-4T | 18.5 | 47 | 38 | |
| PV100-022G-4T | 22 | 51 | 45 | |
| PV100-030G-4T | 30 | 70 | 60 | |
| PV100-037G-4T | 37 | 80 | 75 | |
| PV100-045G-4T | 45 | 94 | 92 | |
| PV100-055G-4T | 55 | 128 | 115 | |
| PV100-075G-4T | 75 | 160 | 150 | |
| PV100-090G-4T | 90 | 190 | 180 | |
| PV100-110G-4T | 110 | 225 | 215 | |
♣ We are factory manufacturer of Solar Pumping Inverter, High/Low hybrid solar inverter, Power inverter, AGM/GEL Battery Charger and Solar Charge Controller.
Click the picture into our home page to view more our related hot sale items!
(If you have any questions,please feel free to inquiry us! We are service at any time!)
1. Solar AC Pump Controller is specifically designed to replace the diesel generator or conventional electric energy for water pump.
2. Solar pumping system aims at providing solutions for the region that suffers water shortage, no power supply or uncertain power supply.
3. Ideal for both remote and urban applications, the Solar Pump Controller can be used for monoblock as well as submersible pump.
4. Can be applicated in variety of scenes including: Impounding reservoir, Animal husbandry, Industrial water, Fountains, Irrigation system, Fish pond water exchange, Flood irrigation,and River water intake etc.
